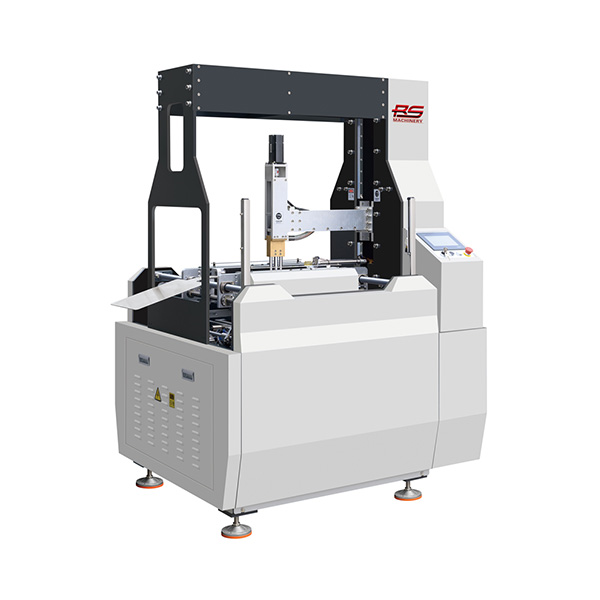

RSK-450ZS Semi Automatic Rigid Box Making Machine

Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts
Semi Automatic Rigid Box Making Machine
Transport Package
Wooden Case
Driven Type
After-Sales Service
Engineers Available to Service Machinery Overseas
Automatic Grade
Service Location
India Turkey Egypt Algeria Kuwait Qatar France Myanmar Vietnam also South Africa
Contact Now

This RSK-450ZS is simple and smart operation No need to change the pressure Plates No need to change the fold blades Rack of gear engagement transmission more stabilizing and long life


Technical Parameters
Model RSK-450ZS
Max box size: 420*450*120mm
Min box size: 50*70*12mm
Max paper size: 580*850mm
Turn in depth: 10-60mm
Card board thickness : 0.8-3mm
Surface paper thickness: 100-200gsm
Precision: ±0.5mm
Power: 2.25KW 380V 3Phase
Air supply: 10L/Min  0.8Mpa
Box Making Speed: 15-25box/min
Dimension: 1100*1000*2400mm
Machine weight: 800kg

Equipment introduction

RSK-450ZS manual Rigid Box Making Machine, this is the newest products of Real star machinery Company, base on a large number of user feedback and advice,we constantly improve and perfect the equipment, it make the performance of equipment is more stable,more soft smooth action and lower noise,the speed is also run ahead of similar factories.This equipment completely satisfied with all kind of gift box packaging,for the boxes that with a complex structure,processing technology and high quality requirements of appearance,such as well-known electronic product packaging,cosmetics packaging and luxury packaging,the equipment not only can satisfy different specifications and structure packaging enterprises,but also improve the production efficiency and qualified rate.

Main transmission gears adopts servo drive,smooth operation,high stability,adapt to  a variety of paper with different thickness,size and structure.Fold range between 10-90mm.Quadrilateral pressure foam parts with double guide rail and adjusting screw,accurate positioning, convenient debugging, high efficiency,and foaming air bubbles removing quadratic pressure.Quadrilateral pressure foam panel mounted with malposed installation, solved the problem of the different size box customized panel, save costs and time variable.Angle parts adopt guide rail positioning and activities spring,it’s not easy to break the surface paper and box,adjustment convenient,more beautiful.Multi-function box making system can complete different shape boxes.Ejection divice adopt cylinder synchronous operate mode,smooth operation,take off box system adopts automatic inside ventilation structure,simple structure,convenient debugging,can make smaller boxes.


  1. The movements of main shaft, mold stretch, wrapping, folding-in, and bubble pressing, which are all driven by double servo motors and cam boxes, guarantee a quiet and stable operation circumstance and smooth mechanical process.
  2. Besides the cam for pressing the contingent bubble, there are 4 cylinders for additional bubble pressing, solving the thicker paper issue and worse glue issue.
  3. Every process can be in Inching Model synchronously, helping you to observe the production details and adjust to the best parameters.
  4. Folding Corner Edge is up to 80mm as standard, or it can be customized to 150mm, and this is controlled by rails and cylinder, which is adjustable and precise.
  5. Vacuum fan to keep the box on the machine, and this tension can be adjusted according to the sizes of the boxes.
  6. Controlled by PLC Panasonic/Schneider, with formulas memory. It takes only 15 minutes to change to another box.
  7. Imported optical grating transducer protects the operator from operation injury.
  8. Computer control with error auto stop and display.
  9. Table board and frame are processed by CNC by one time and enjoy durable quality.
  10. Fold ears, wrap, insert and form the box automatically in one lot
  11. With Schneider touch screen interface
  12. With AirTAC cylinder and Taiwan Brand guide rail . Servo motor Panasonic
  13. Quick mould change design to satisfy producing different size box
  14. Equipped with brush wheel for folding sides smoothly
  15. Equipped with air pressure detector on the box inserter. The machine can’t run if the box are not inserted or inserted wrongly
  16. The bottom mould is pneumatic drive to prevent bubble generation

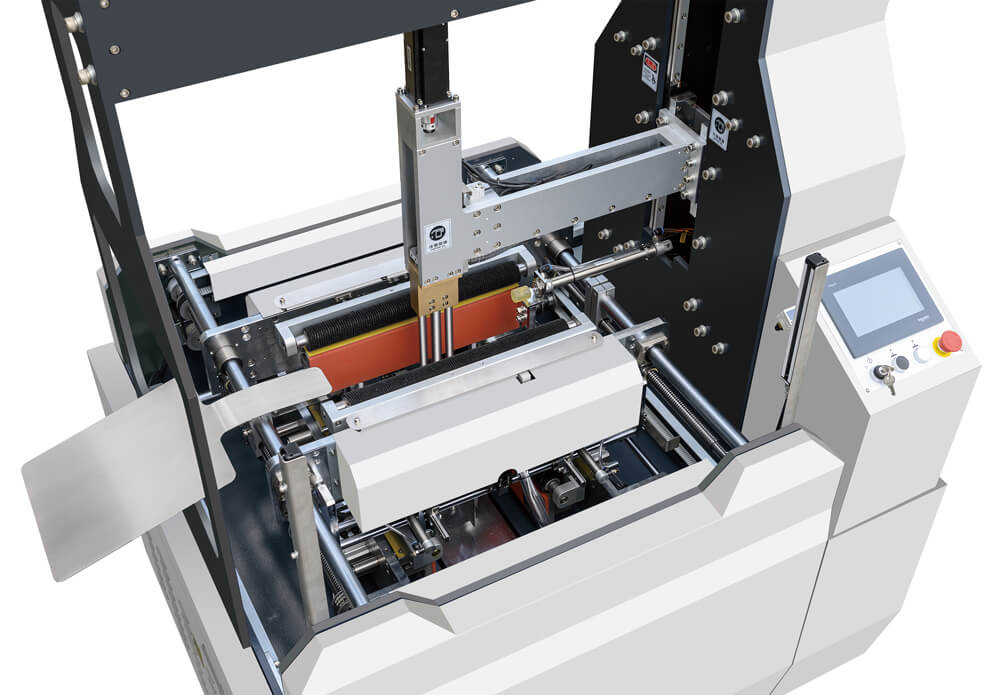

RSK-450ZS semi-automatic hard box making machine detail drawing
