TM-1080AE Automatic Stripping Blanking Machine

This is the lattest version for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It’s saving laborcost, improve the product quality, and increase the production speed.

Advantage

1.Compraring to traditional stripping blanking on die cutting machine which uses gantry frame as the base for installing with stripping mould, our new design doesn’t use mould for stipping and this design is space saving, and convinient for operating.

2.Servo motor and screw ball ensures a precise pile positioning.

3.Adjustable hydraulic system the pressures are centralized adjustable suitable of different materials of different sizes and weights.

4.Stripping needles (sticks) are quick and easy to changing to fit differnent products fromats and patterns by 100% could protect the products away from the marks.

5.Automatic centralized lubrication system max extend the service life of the machine.

6.The operating panel adopts with infrared sensors to avoid safety accident caused by wrong operation.   Its also easy and quick to program with memories system on the touch screen.

7.Safety devices and sensors keeping workers away from dangerous.

TM-1080AE Automatic Stripping Blanking Machine TM-1080AE Automatic Stripping Blanking Machine

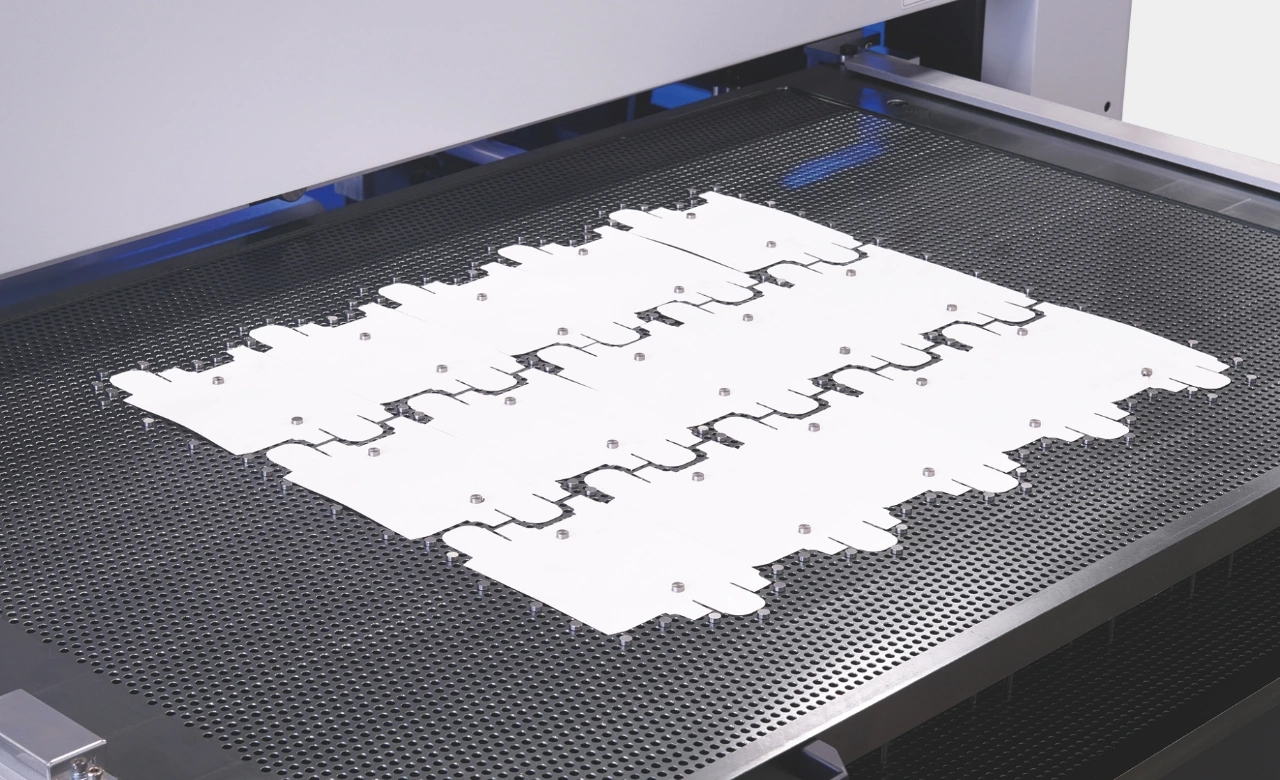

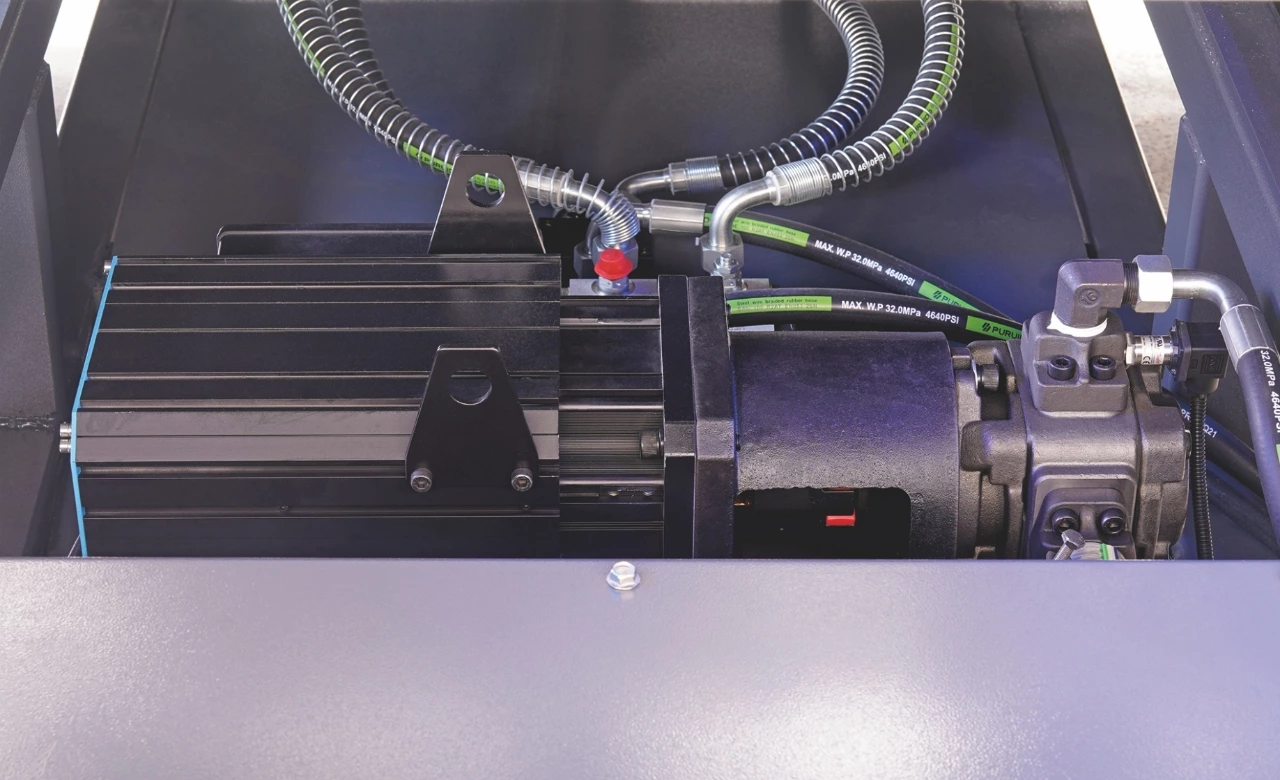

No blanking stripping mould/die system (easy use) 11KW servo hydraulic system(strong and save power)

TM-1080AE Automatic Stripping Blanking Machine

TM-1080AE Automatic Stripping Blanking Machine TM-1080AE Automatic Stripping Blanking Machine
Technical Parameters
Model TM-1080AE
Max sheet size 1080X780mm
Max pile height 100mm
Min pile height 40mm
Table height 1100mm
Min stripping size 80X120mm
Max stripping size 1080X780mm
Stripping speed 5 times/minute
Max pressure 100bar
Power voltage/Frequency 380V/50Hz
Power 9 Kw
Air requirement 4L/Min 4-7bar

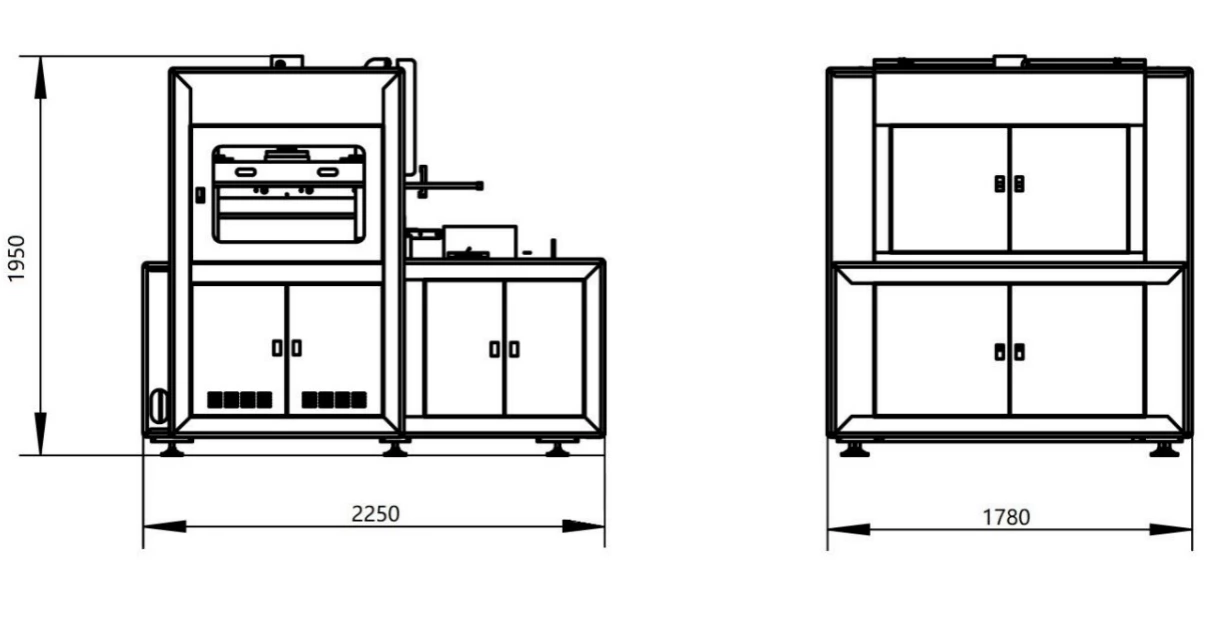

Machine dimensions 2400X1800X1950mm
Machine Weight 4T

Configuration

Part Brand Remark
PLC INOVANCE
SERVO   MOTOR (HYDRAULIC STATION) INOVANCE 10.5KW
SERVO DRIVER (HYDRAULIC STATION) INOVANCE 11KW
SERVO MOTOR (TABLE) INOVANCE 0.75KW
SERVO DRIVER (TABLE) INOVANCE 0.75KW
TOUCH SCREEN INOVANCE (WIFI VERSION) 10inches
CONTACTOR SCHNEIDER
BUTTON SCHNEIDER
TOOLS SATA
TOOL BOX DELIXI
Quotation
To: Eco Pack Industry srl                                                                                                                                             Date:2025/8/13 Add:15 Voluntarilor Str., Chisinau, Moldova, 2037.
Item Specification Quantity Unit Price Amount
AUTOMATIC FULLY BLANKING STRIPPING MACHINE (Without stacker) TM-1080AE 1 28000$ 28000$

Total       28000$

Above price is FOB Ningbo/Shanghai port

Payment term :TT 30% deposit and balance will be paid before delivery

Delivery time:25 days after received deposit payment

Warranty :13 months

TM-1080AE Automatic Stripping Blanking Machine

Bank details

Account No:402673673833(USD)

PAYEE:WENZHOU REAL STAR MACHINERY CO.,LTD

BANK:BANK OF CHINA RUIAN SUB-BRANCH

BANK ADDRESS:NO.217 HONGQIAO SOUTH ROAD RUIAN WENZHOU ZHEJIANG CHINA

SWIFT CODE:BKCHCNBJ92B

After service and support :

Online service support available

Oversea installation support ,training support service ,Production advising service are all available (salary 100$/day)

Buyer will bill the double way air ticket and Visa and Accommodation
